Stud Welding Gun JD-25 Shear Stud Gun 60V Stud Range 3mm-25mm

  • Product Details
  • Company Profile

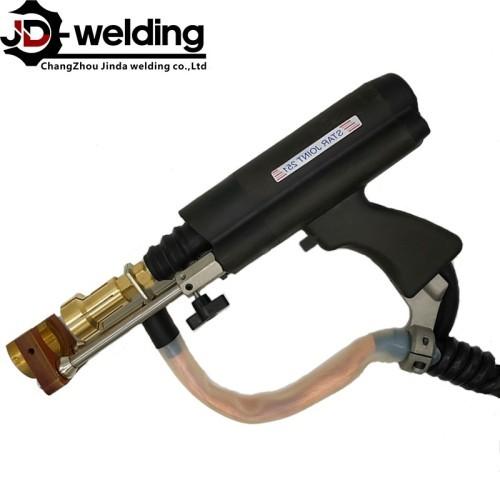

Stud Welding Gun JD-25 Shear Stud Gun 60V Stud Range 3mm-25mm

Product description

Stud welding gun, JD-25 Shear connector gun

The modelJD-25I is a heavy duty stud welding gun, especially for studs ø 16 – 25 mm Ideal for welding shear connectors SD 16-25mm Ideal for through-deck-welding td

We are a manufacturer of stud welding machines, we have a wide range of products, Stud Welding,Weld Studs,Mig Mag CO2,TIG MMA etc. We look forward to your information.


1.0 Intrduction:


The modelJD-25I is a heavy duty stud welding gun, especially for studs ø 16 – 25 mm

Ideal for welding shear connectors SD 16-25mm

Ideal for through-deck-welding td

Most suitable for long shear studs

Adjustable hydraulic plunge damper

Standard support with 2 legs

Body: fibre-glass reinforced polyamide

Lifting ring system with length compensation up to 8mm

Control cable plug (4 wire)

Optimal Integrated shielding gas device


2.0 Product parameters:


Model:JD-25I
Stud range:3mm-25mm
Hydraulic Damper:yes
adjustable lift assemble:Opitonal
Lift setting:0-8mm
Lift coil voltage:60V
Control cable port:4
Control cable:4*1.0mm2
Welding cable:120mm2
Weight:2.7kg

3.0


Stud Welding Gun Jd 25 Shear Connector Gun


4.0 Packaging And Transportation:

Quality Stud Welding Gun JD-25 Shear Stud Gun 60V Stud Range 3mm-25mm for sale
