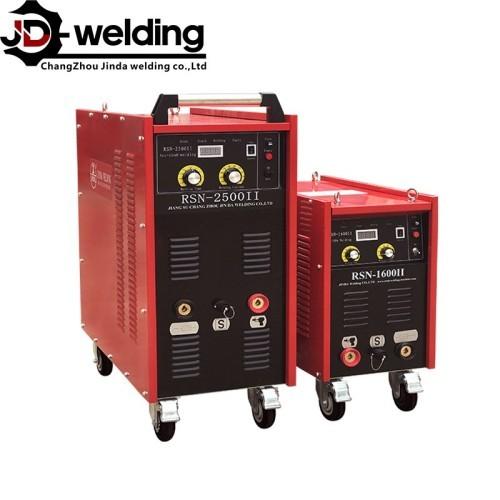

RSN Series Stud Welder Drwan Arc Stud Welding Machine 60KVA 100KVA 125KVA

Product description

Stud welder ,Drwan arc stud welding machine

1.0 Intrduction:

Drawn Arc Stud Welding, or more simply stud welding, is the process which quickly joins together a base metal, such as steel, to a fastener. This is done via a controlled electric arc process, which melts the end of the fastener to the base metal. There are many types of Fasteners, which are also known as stud welds, including tapped, unthreaded, and threaded.

We are a manufacturer of stud welding machines, we have a wide range of products, Stud Welding,Weld Studs,Mig Mag CO2,TIG MMA etc. We look forward to your information.

2.0 Product parameters:

Model	RSN-1600i	RSN-2500i	RSN-3000i
Input power	60KVA	100KVA	125KVA
Max working current	1600A	2500A	3000A
Welding time	0-2 Adjustable	0-2 Adjustable	0-2 Adjustable
Stud randge	3mm-16mm	3mm-25mm	3mm-32mm
Production rate	Φ16/ 10pcs per min	Φ22/ 12pcs per min	Φ25/ 10pcs per min
Weight	55KG	100KG	115KG
Dimension	650mm330mm320mm	780mm380mm390mm	800mm400mm890mm

3.0

Welding Studs For Arc Stud Welding

4.0 Packaging And Transportation:
